Wifi
Control via WiFi on your Smartphone, PC or Tablet
INFLIGHT

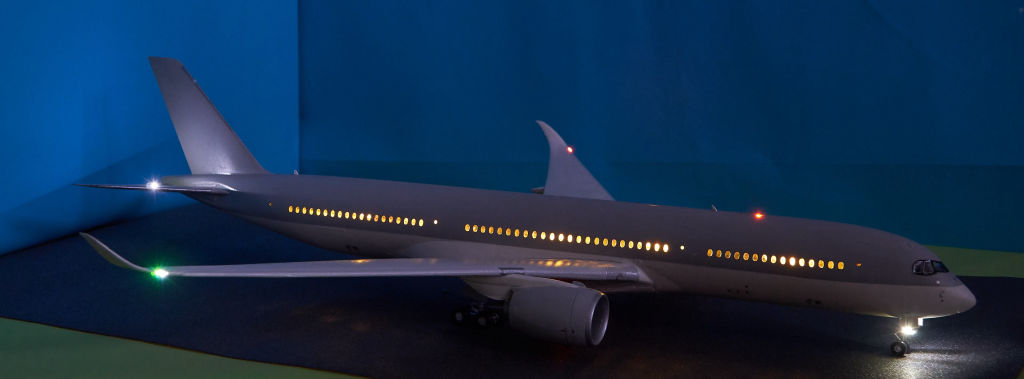

Automatic Illumination Solution for Model Aircraft
Automatic Illumination Solution for Model Aircraft
Control via WiFi on your Smartphone, PC or Tablet
Simple switching on and off, dimming of the cabin lighting or synchronization of the collision warning lights with position flashing lights - for both Airbus and Boeing aircraft - depending on the chip, up to 11 light functions can be switched
The lights can be switched manually or automatically in a simulated flight (~ 6,5 min)
Power Supply via über Micro-USB (e.g. via Powerbank or Adapter), Connection of LED either via Jumper wires or direct soldering
INFLIGHT can be integrated in an existing Wifi network or can run its own network.
Depending on the base chip: 34-48 mm long, 26 mm wide and 8-13 mm high. Perfect for integration even into models up to a scale of 1/150. For smaller scales, the chip could be placed outside
Optional: Add sound for even more realism
| Feature | INFLIGHT MINI | INFLIGHT | INFLIGHT + SOUND |
|---|---|---|---|
| Size | Length 34 mm
Width 25,5 mm Height 8 mm, with Pins 13 mm, with Pins + Jumper-Wire 24 mm | Length 48 mm
Width 25,5 mm Heigh 5 mm, with Pins 13 mm, with Pins + Jumper-Wire 24 mm | Length 48 mm + 20 mm Width 25,5 mm + 20 mm Height 5 mm, with Pins 13 mm, with Pins + Jumper-Wire 24 mm (+ is related to the additional MP3 module; it fits between the pins) |
| Wifi | WiFi 5 2,4 GHz | WiFi 5 2,4 GHz | WiFi 5 2,4 GHz |
| Power supply | Micro-USB
5V DC | Micro-USB
3,7 V or 5V DC | Micro-USB
5V DC |
| LED functions | 10
Lights for Taxi + Runway lights are combined | 11 | 9 Lights for Taxi + Runway, only simple strobe |
| Operation mode | Autopilot or Manual | Autopilot or Manual | Autopilot or Manual |
| Price | 28,99 € | 28,99 € | 49,99 € (INFLIGHT Modul + MP3-Modul + wires) |
| Article no. | R100012 | R100011 | R100013 |
| Case (+ ca. 2mm in all dimensions) | R300012 with cover for unused PINs 1,99 € | R300011 1,49 € | R300011 with cover for unused PINs 1,99 € |
Download the installation guide and documentation here
German
INFLIGHT+SOUND Handbuch Deutsch
INFLIGHT MINI Handbuch Deutsch
