Wifi
Control via WiFi on your Smartphone, PC or Tablet
INDRIVE

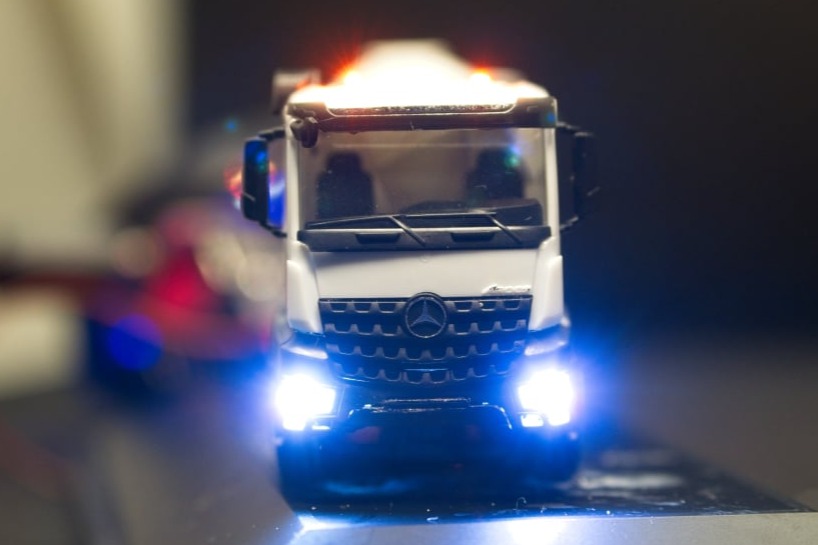

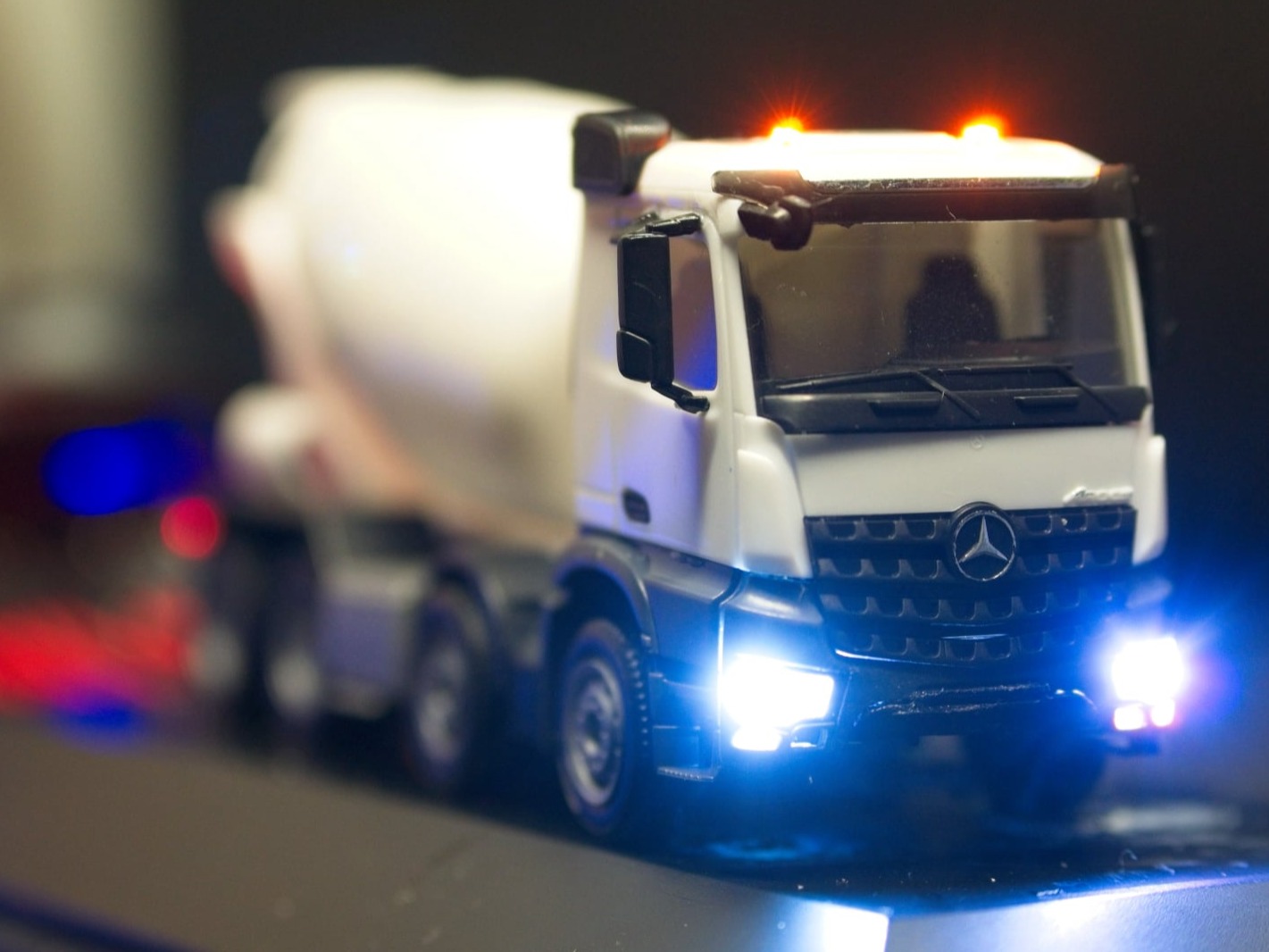

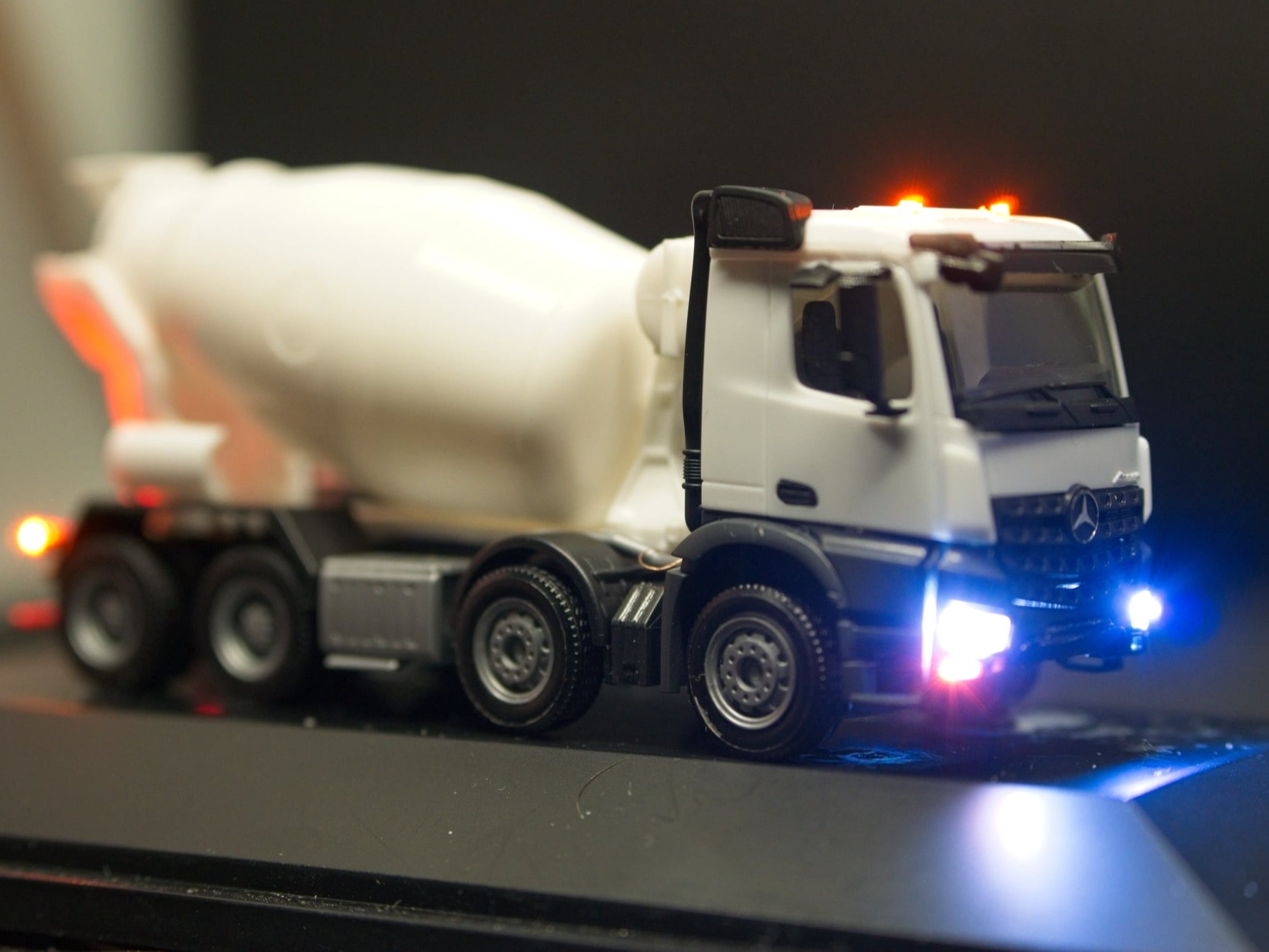

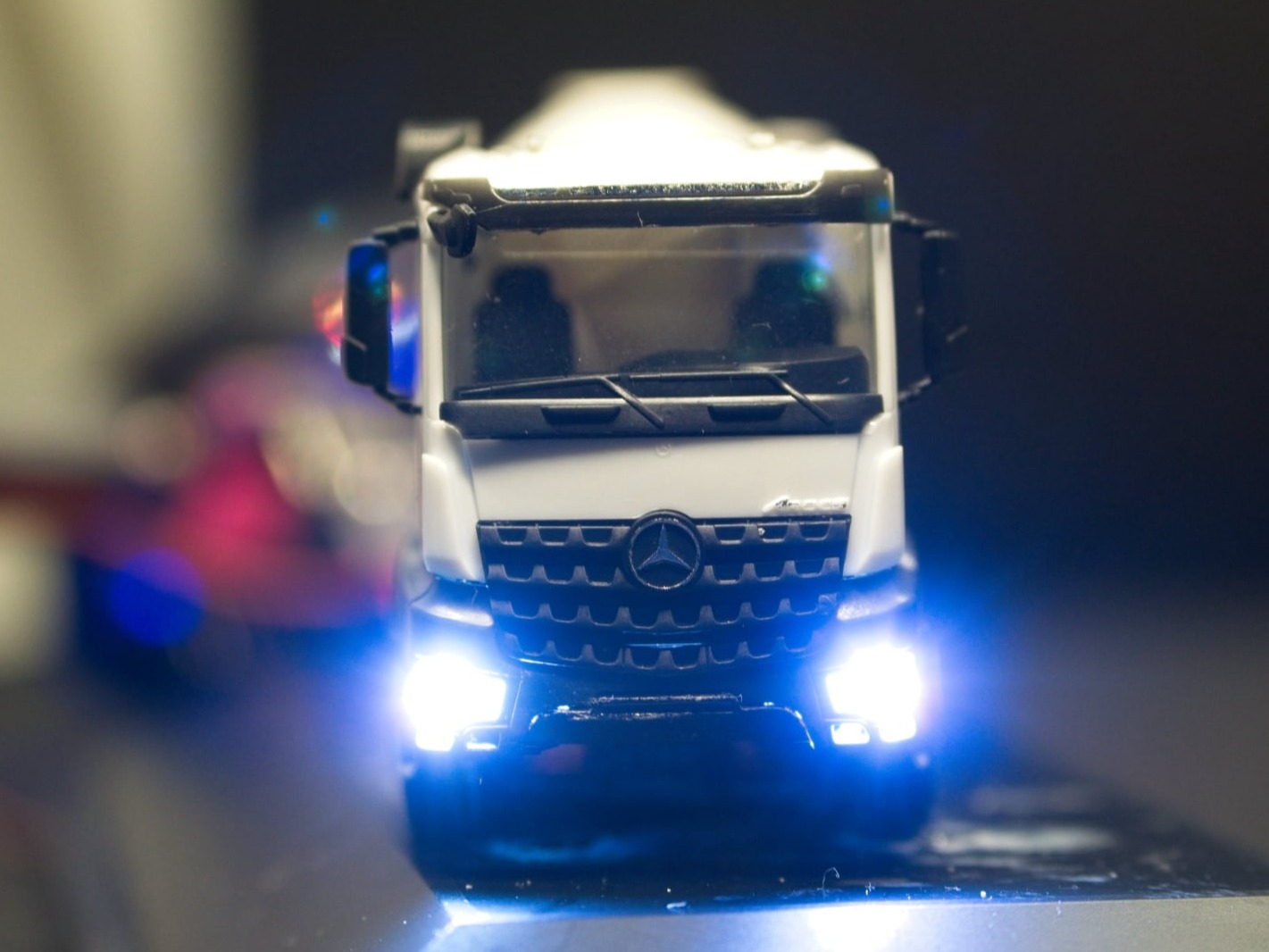

Automatic illumination for car models
Automatic illumination for car models
Control via WiFi on your Smartphone, PC or Tablet
turn signal (rights/lefts), 2 different flashlights, ...

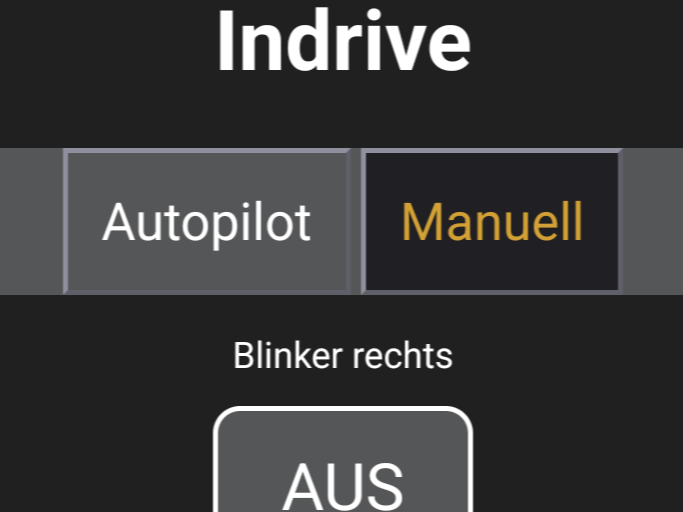

The lights can be switched manually or automatically via Autopilot

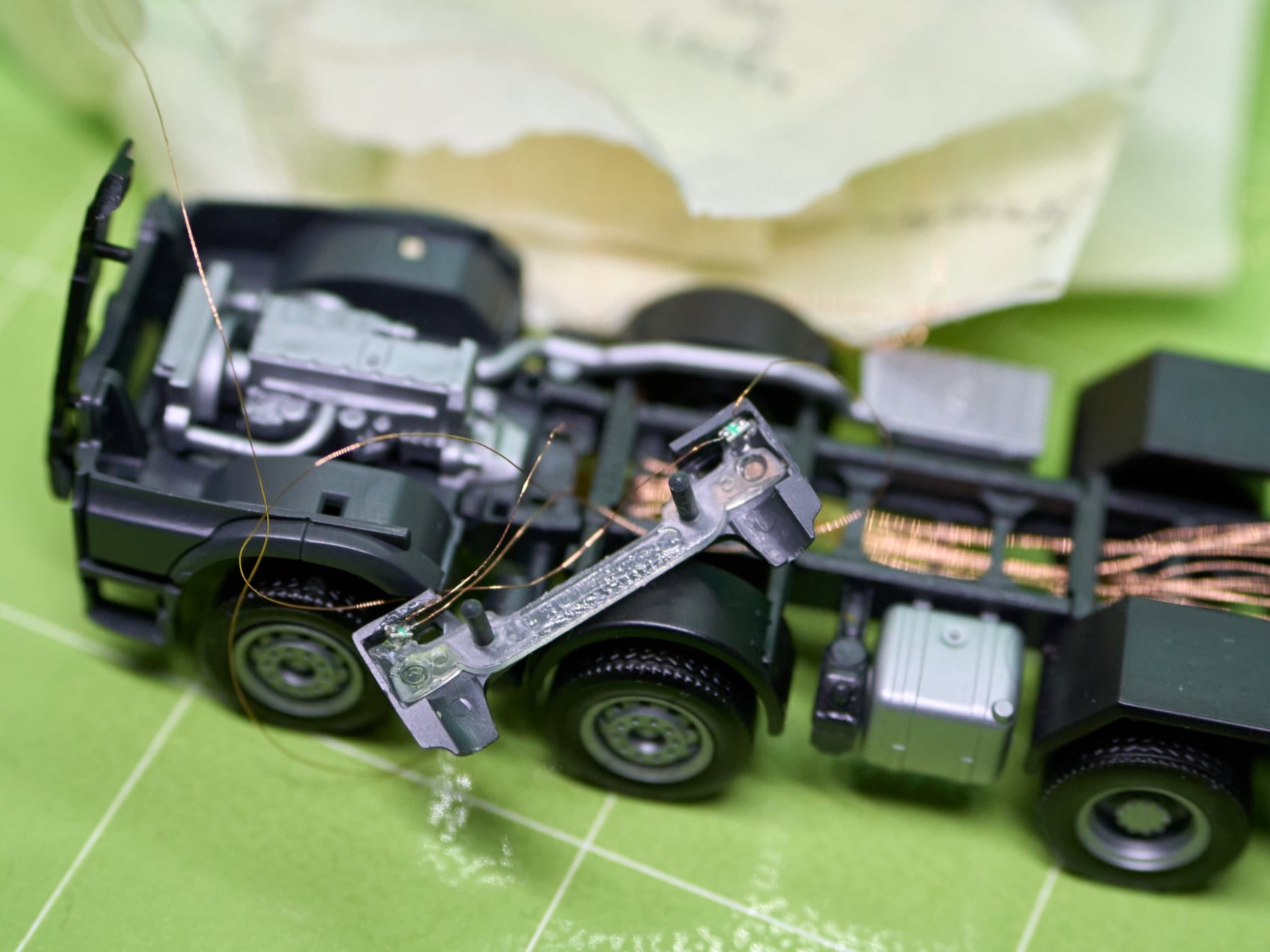

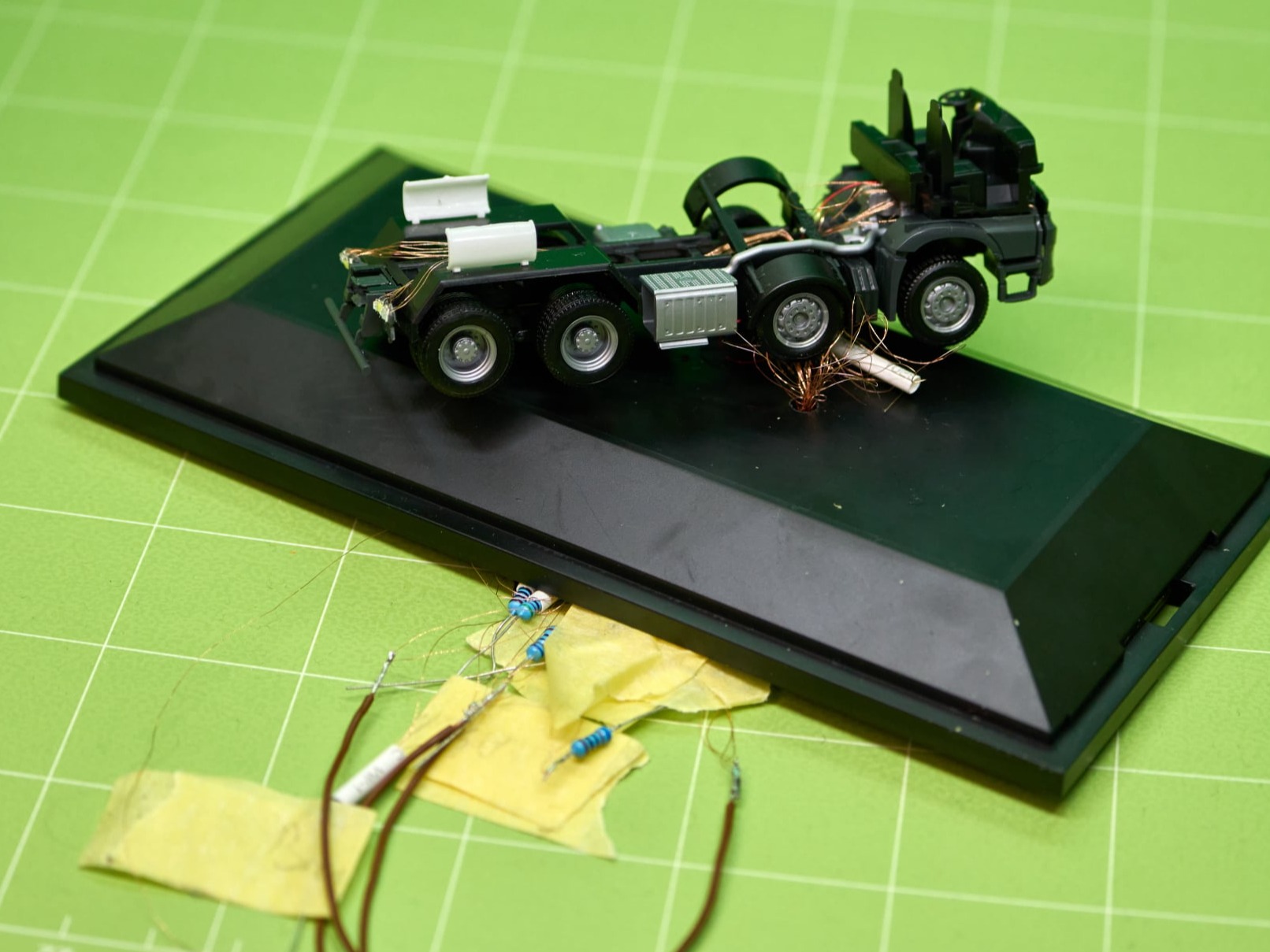

Power Supply via über Micro-USB (e.g. via Powerbank or Adapter), Connection of LED either via Jumper wires or direct soldering
INDRIVE can be integrated in an existing Wifi network or can run its own network
Depending on the base chip: 34-48 mm long, 26 mm wide and 8-13 mm high.
Optional: Add more realism by adding sound (requires additionally a micro-SD card with max. 8 GB)
| Feature | INDRIVE MINI | INDRIVE | INDRIVE + SOUND |
|---|---|---|---|
| Size | Length 34 mm
Width 25,5 mm Height 8 mm, with Pins 13 mm, with Pins + Jumper-Wire 24 mm | Length 48 mm
Width 25,5 mm Heigh 5 mm, with Pins 13 mm, with Pins + Jumper-Wire 24 mm | Length 48 mm + 20 mm Width 25,5 mm + 20 mm Height 5 mm, with Pins 13 mm, with Pins + Jumper-Wire 24 mm (+ is related to the additional MP3 module; it fits between the pins) |
| Wifi | WiFi 5 2,4 GHz | WiFi 5 2,4 GHz | WiFi 5 2,4 GHz |
| Power supply | Micro-USB
5V DC | Micro-USB
3,7 V or 5V DC | Micro-USB
5V DC |
| LED functions | 10 | 11 | 9 |
| Operation mode | Autopilot or Manual | Autopilot or Manual | Autopilot or Manual |
| Price | 28,99 € | 28,99 € | 49,99 € (INDRIVE Modul + MP3-Modul + wires) |
| Article no. | R100022 | R100021 | R100023 |
| Case (+ ca. 2mm in all dimensions) | R300012 with cover for unused PINs 1,99 € | R300011 1,49 € | R300011 with cover for unused PINs 1,99 € |
Download the installation guide and documentation here
German
INDRIVE+SOUND Handbuch Deutsch
